Typology construction using K-means clustering in R

Introduction

This tutorial demonstrates how to construct urban typologies in R. Specifically, we use K-means Clustering, a method of unsupervised machine learning, to classify urban units into typologies for urban stream restoration.

Preparation

In the previous session, we introduced the key preparatory steps for typology construction before clustering. Here, we provide a specific example that illustrates how these steps can be applied in a particular context.

Define your objective:
To identify urban stream typologies in areas directly adjacent to stream corridors, where local conditions affect stream ecology and guide restoration design strategies.
Define your focused area:
The stream corridors in the whole city of Dresden.
Define your spatial unit:
Fixed size, 100 x 100 m square; centered on the stream and rotated according to the local flow direction of the stream; overlapped units are deleted.
Define your variables:

impervious – percentage of impervious surface, such as roads, squares and buildings; related to run-off and water management, may require rain gardens or permeable pavement.

slope – mean terrain slope (degrees); related to erosion and stability, may require slope planting or retaining walls.

crossing – the number of points where roads or railways cross a stream, divided by stream length; related to ecological connectivity, may require ecological bridges.

Prepare geometries of spatial unit covering focused area:
Read in grids_TC.gpkg, with a column grid_id created.
Calculate the value of variables in each spatial unit:
Read in grids_TC.gpkg, with columns impervious, slope, crossing created.

Clustering steps

After the above preparatory steps, now we start the clustering process.

We will:
Step 1. Load R packages and data
Step 2. Standardization
Step 3. Determine optimal k
Step 4. Run K-means clustering
Step 5. Interpret cluster center
Step 6. (Optional) Calculate distance to cluster center

Step 1. Load R packages and data

We begin by loading the necessary R packages.

If you haven’t installed these packages yet, remove the # and run the following chunk before continuing:

#install.packages("sf")
#install.packages("dplyr")

Note

Adding # at the beginning of a line of code will prevent that line from being executed. We use it here because we only need to run install.packages() once, when we install a package for the first time. After that we disable that line because we do not need to run it anymore.

Next, load the required packages:

library(sf) # for processing vector data

Linking to GEOS 3.13.0, GDAL 3.8.5, PROJ 9.5.1; sf_use_s2() is TRUE

library(dplyr) # for selecting and transforming data


Attaching package: 'dplyr'

The following objects are masked from 'package:stats':

    filter, lag

The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union

We first need to confirm that the project folder is an RStudio project. This will ensure that the working directory points to the project folder. You can confirm this with getwd(). Make sure you copied the prepared grid_TC.gpkg in the root of your working directory folder. Now we read the dataset from a GeoPackage file and display the first few rows using head():

#getwd()
grids <- st_read("grids_TC.gpkg", quiet = TRUE)

# View the first few rows of the data
head(grids)

Simple feature collection with 6 features and 4 fields
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 420889.5 ymin: 5658844 xmax: 421165.8 ymax: 5659723
Projected CRS: ETRS89 / UTM zone 33N
  grid_id impervious    slope  crossing                           geom
1       0          0 4.729869 0.8957654 POLYGON ((420982.1 5659723,...
2       1          0 3.581370 0.7567734 POLYGON ((421056.3 5659624,...
3       2          0 3.182152 0.9955550 POLYGON ((421150.8 5659341,...
4       3          0 3.733626 0.9997012 POLYGON ((421142.7 5659083,...
5       4          0 2.914602 0.0000000 POLYGON ((421150.3 5659197,...
6       5          0 3.828850 0.0000000 POLYGON ((421147.5 5658961,...

We can check how many girds in the file.

# Count how many grid units we have
nrow(grids)

[1] 1745

We can also visualize the data to have a better understanding visually.

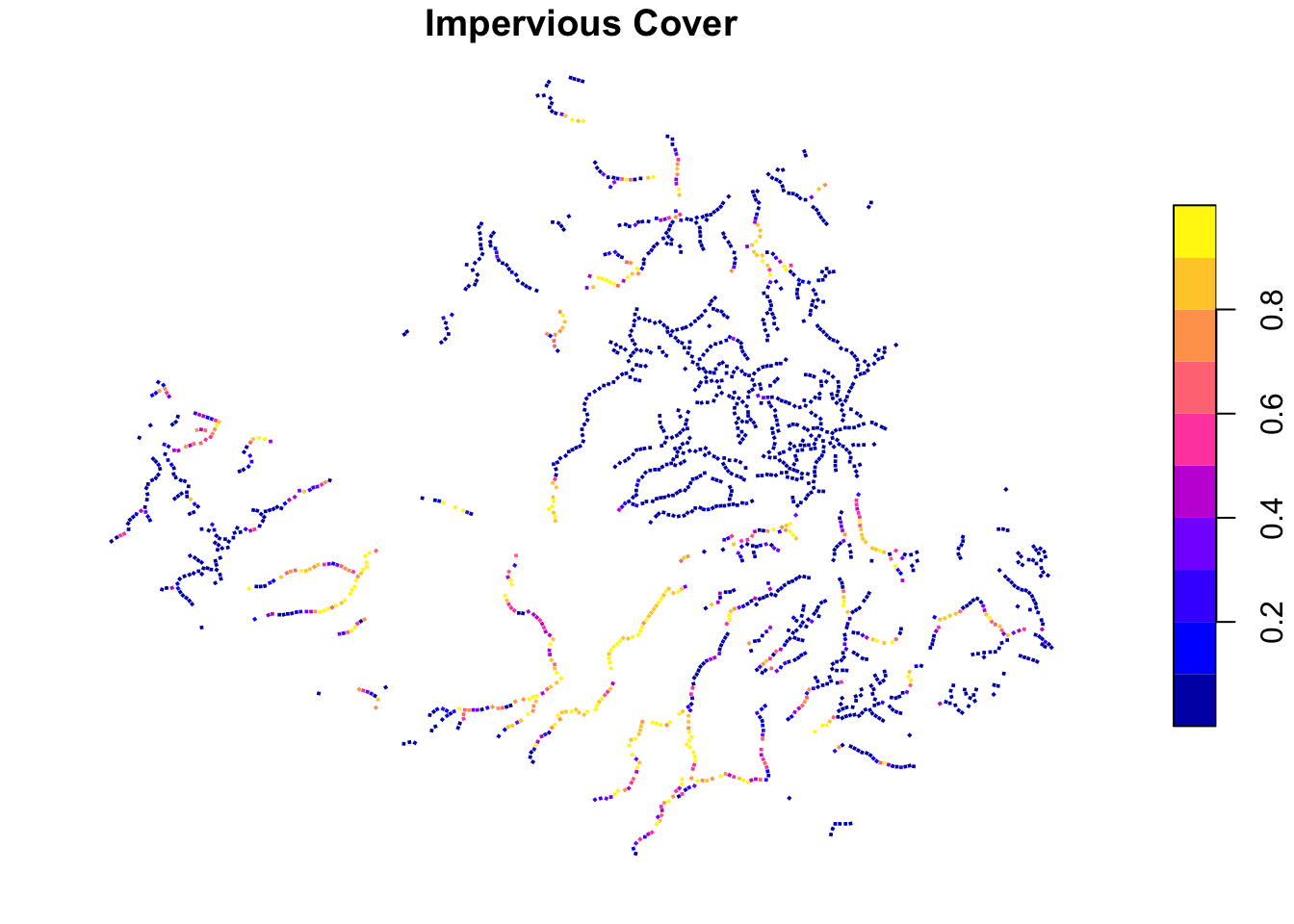

# Plot impervious
plot(grids["impervious"], border = NA, main = "Impervious Cover")

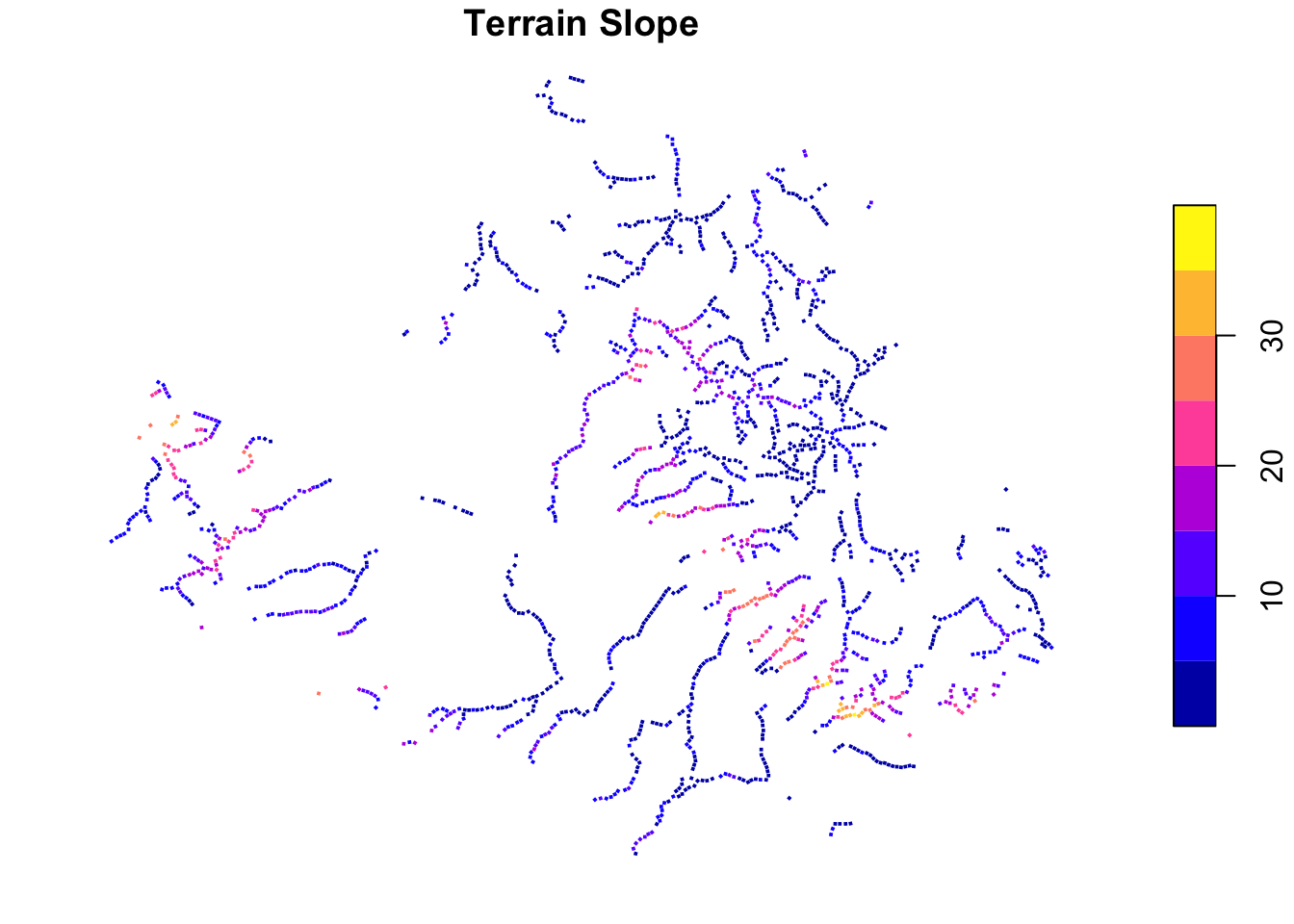

# Plot slope
plot(grids["slope"], border = NA, main = "Terrain Slope")

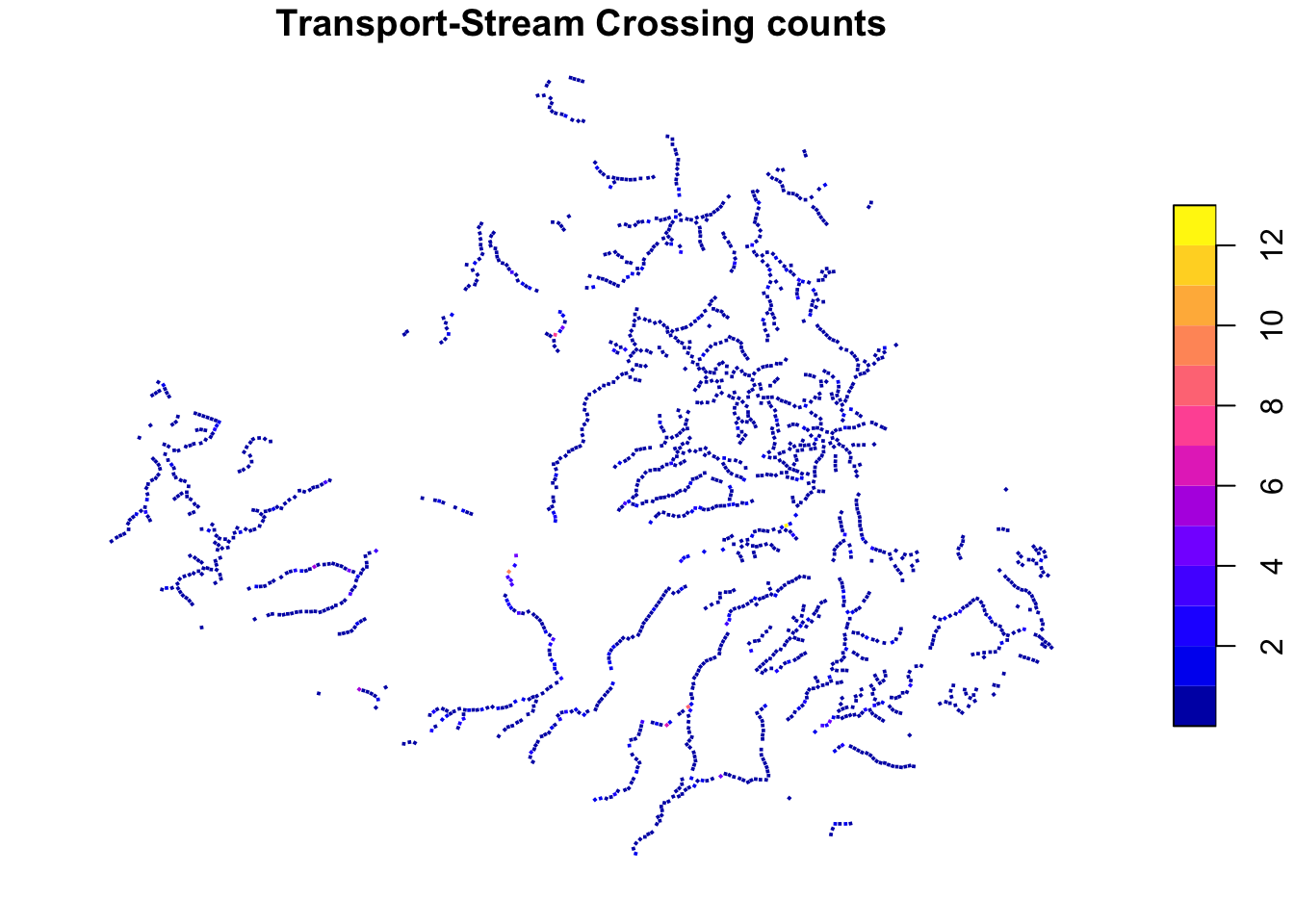

# Plot crossing
plot(grids["crossing"],  border = NA,
     #breaks = "quantile",
     main = "Transport-Stream Crossing counts")

Note

By default, plot() is using equal interval, which might make the differences hard to see. You can change the breaks type to show the visual difference more clearly.

Step 2. Standardization

We select the relevant features. These features are then standardized to ensure they contribute equally to the clustering algorithm.

features <- grids |>
  select(impervious, slope, crossing) |>
  st_drop_geometry() # remove geometry column so we just keep a data table

X_scaled <- scale(features) # Standardize (mean=0, sd=1)

head(X_scaled)

  impervious      slope   crossing
1 -0.6612074 -0.5714982  0.4049445
2 -0.6612074 -0.7437663  0.2509882
3 -0.6612074 -0.8036468  0.5154779
4 -0.6612074 -0.7209288  0.5200705
5 -0.6612074 -0.8437778 -0.5872618
6 -0.6612074 -0.7066458 -0.5872618

Note

|> passes the result from the left expression to the right function.

Even after selecting variables from an sf object, the geometry column is still there. Use st_drop_geometry() to remove it before applying functions like scale().

Step 3: Determine the optimal K

We use the elbow method to choose a good number of clusters.

For each value of k (e.g. 2 to 9), we run K-means and record a value called inertia : the total distance between points and their cluster centers. Lower inertia means tighter (better) clusters.

# Initialize an empty numeric vector to store inertia values
inertia <- numeric()

# Try k values from 2 to 9
k_values <- 2:9

# Loop through each k value
for (k in k_values) {
  km <- kmeans(X_scaled, centers = k, nstart = 20)

  # tot.withinss is Total within-cluster sum of squares
  # This measures how compact the clusters are: lower is better.
  inertia <- c(inertia, km$tot.withinss)
}

# Combine the results into a data frame for plotting
elbow_df <- data.frame(k = k_values, inertia = inertia)

print(elbow_df)

  k   inertia
1 2 3490.5663
2 3 2334.0686
3 4 1723.0514
4 5 1428.5589
5 6 1223.6857
6 7 1051.6004
7 8  909.2724
8 9  814.8496

Note

We suggest using a larger nstart value, such as 20 or 50, to get more reliable results. Setting nstart = 20 makes R try 20 different starting points and choose the one with the lowest tot.withinss. The tot.withinss value measures how close points are to their cluster centers. Lower values mean better clustering.

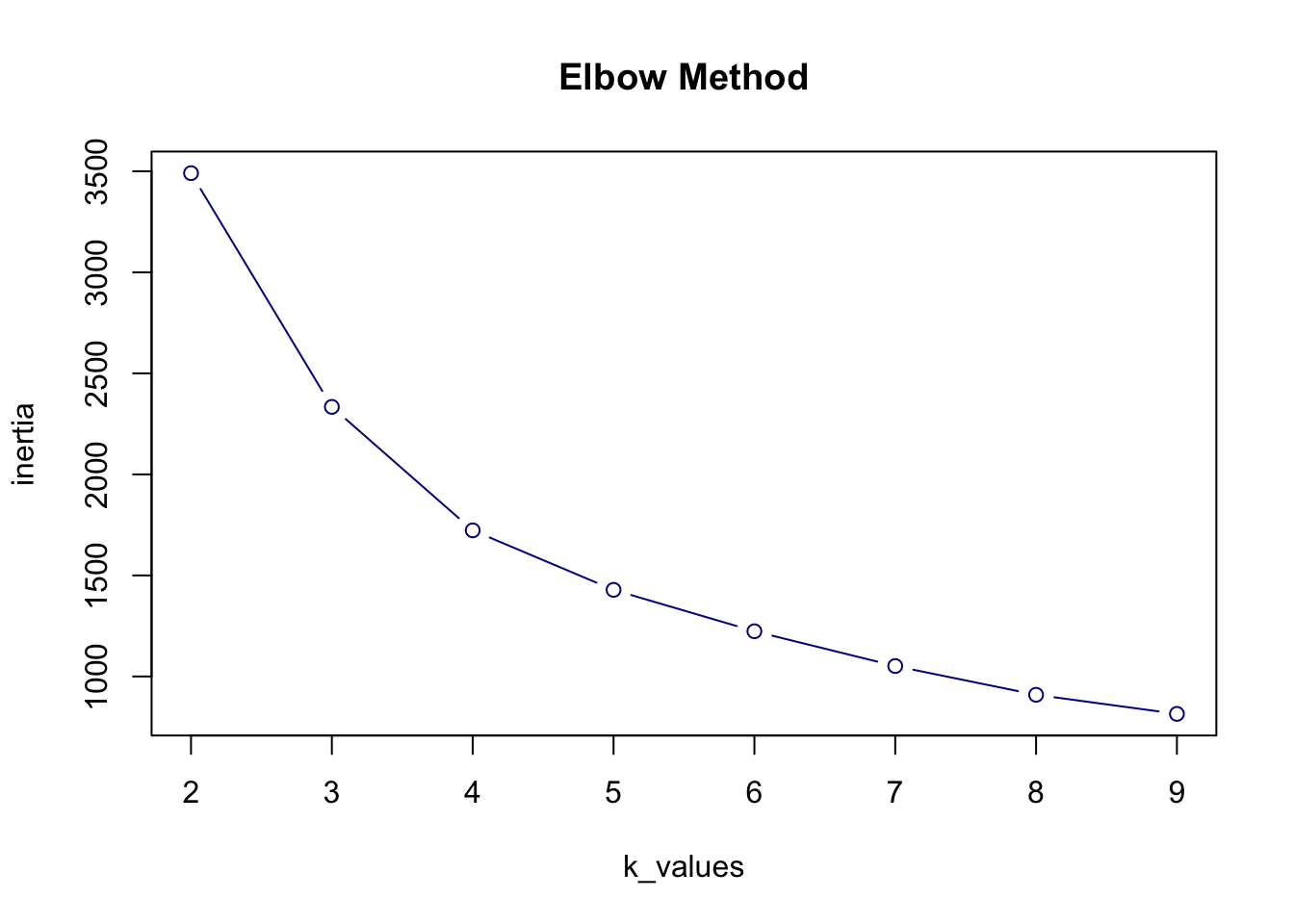

We can visualize how inertia changes with increasing k. After a certain point, adding more clusters doesn’t help much — the curve bends. That bend is called the elbow point, and we use it to choose the best k.

# Make the elbow plot
plot(k_values, inertia,
     type = "b",                  # shown both points + lines
     col = "darkblue",
     main = "Elbow Method")

Step 4. Run K-Means clustering

Based on the elbow plot, we choose k = 4 as a good number of clusters.
We now run the K-means algorithm and assign each grid to one of the four clusters.

# `set.seed()` sets the random number generator to a fixed state
# Set the seed so the clustering result is always the same when re-run
set.seed(0)  # The number 0 is just a fixed choice. You can also use 10, 345, etc.

# Choose the number of clusters based on the elbow plot
k <- 4

# Run K-means clustering on the standardized data
kmeans_result <- kmeans(X_scaled, centers = k, nstart = 20)

# Add the cluster labels to the spatial data
grids$cluster <- as.factor(kmeans_result$cluster) # The result kmeans_result$cluster is a list of cluster labels (1 to 4), in the same order as the original rows in X_scaled and grids

head(grids)

Simple feature collection with 6 features and 5 fields
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 420889.5 ymin: 5658844 xmax: 421165.8 ymax: 5659723
Projected CRS: ETRS89 / UTM zone 33N
  grid_id impervious    slope  crossing                           geom cluster
1       0          0 4.729869 0.8957654 POLYGON ((420982.1 5659723,...       3
2       1          0 3.581370 0.7567734 POLYGON ((421056.3 5659624,...       3
3       2          0 3.182152 0.9955550 POLYGON ((421150.8 5659341,...       3
4       3          0 3.733626 0.9997012 POLYGON ((421142.7 5659083,...       3
5       4          0 2.914602 0.0000000 POLYGON ((421150.3 5659197,...       3
6       5          0 3.828850 0.0000000 POLYGON ((421147.5 5658961,...       3

# Show how many grids fall into each cluster
print(table(grids$cluster))


  1   2   3   4
392 365 932  56

Save the updated grid data (with cluster labels) to a new GeoPackage file. You can use it for further analysis and visualize.

#st_write(grids, "grids_cluster.gpkg")

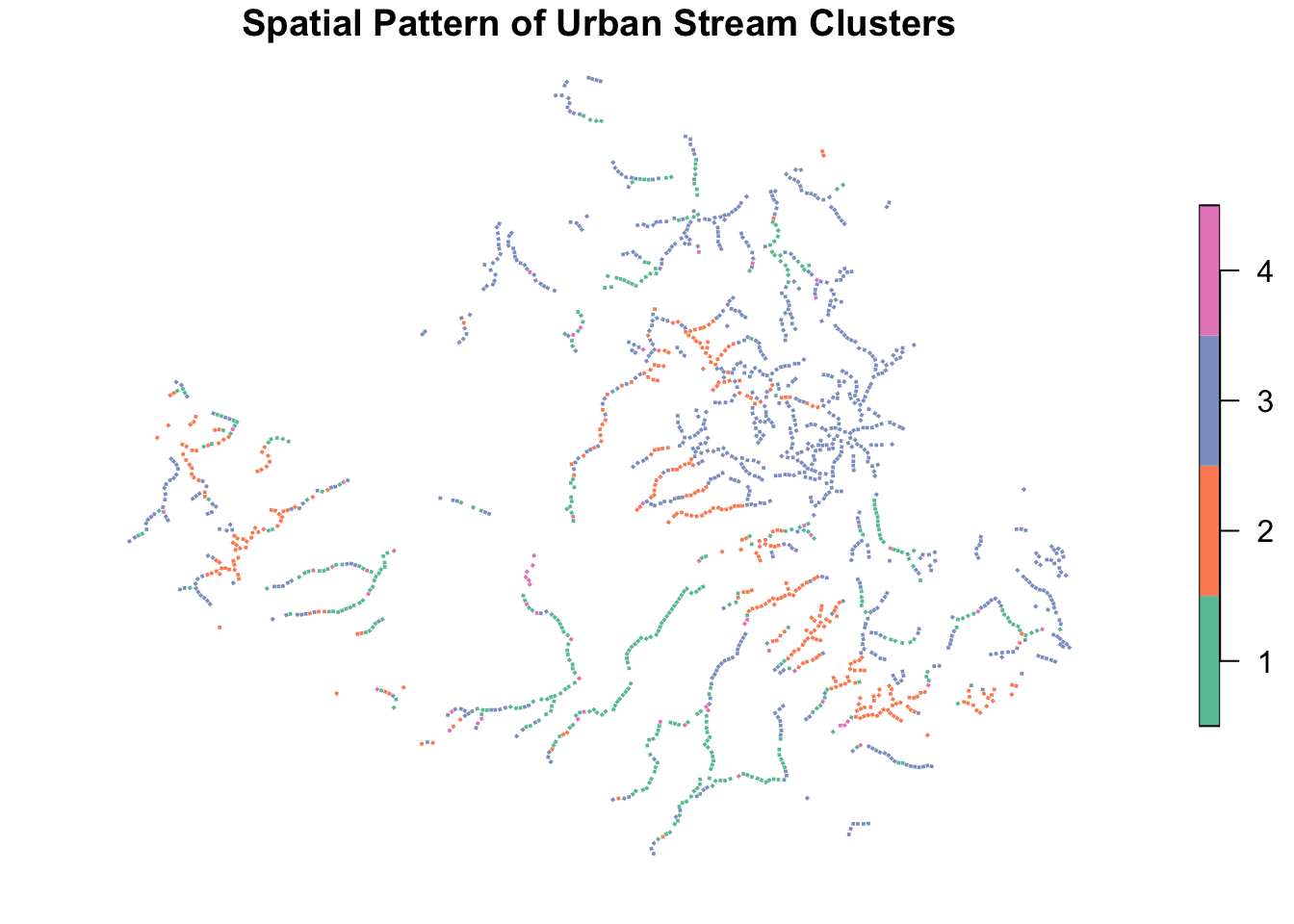

We can also visualize the spatial pattern.

# Plot clusters with base R
plot(grids["cluster"],
     main = "Spatial Pattern of Urban Stream Clusters",
     border = NA)

Step 5. Interpret cluster centers

Now we look at the center of each cluster. First, we check the values in standardized form. Then, we convert them back to the original units (e.g. degrees), so they are easier to understand.

# Get the cluster centers (in standardized form)
scaled_centers <- kmeans_result$centers

# Print them
print("Cluster centers (standardized):")

[1] "Cluster centers (standardized):"

print(scaled_centers)

  impervious      slope   crossing
1  1.6080590 -0.3517408  0.1545016
2 -0.4634886  1.6320976 -0.2651149
3 -0.5563009 -0.4721882 -0.1838377
4  1.0229762 -0.3170328  3.7060541

# Convert the centers back to original scale: x * SD + mean
original_centers <- t(apply(
  scaled_centers, 1,
  function(x) x * attr(X_scaled, "scaled:scale") + attr(X_scaled, "scaled:center")
))

# Print the real-world values
print("Cluster centers (original):")

[1] "Cluster centers (original):"

print(original_centers)

  impervious     slope  crossing
1 0.76223558  6.194974 0.6696651
2 0.06641279 19.421070 0.2908348
3 0.03523757  5.391960 0.3642119
4 0.56570913  6.426370 3.8760120

To interpret the clustering results, we examine the centers of each cluster in the original data scale. The table below summarizes the environmental characteristics of each cluster based on the original (unscaled) values.

Typology description

Type	Impervious	Slope (°)	Crossing	Description
1	0.76	6.2	0.67	Urban area with high imperviousness and moderate traffic impact
2	0.07	19.4	0.29	Steep natural area with minimal development
3	0.04	5.4	0.36	Flat and near-natural stream surroundings
4	0.57	6.4	3.88	Urban stream corridor with high crossing disturbance

Step 6. (Optional) Calculate distance to cluster center

## Step 6 (Optional): Compute distance to cluster center

# Get the cluster center for each row, using the cluster assignment
centroids_matrix <- kmeans_result$centers[kmeans_result$cluster, ]

# Calculate Euclidean distance between each point and its assigned cluster center
grid_distances <- sqrt(rowSums((X_scaled - centroids_matrix)^2))

# Save to grids
grids$cluster_dist <- grid_distances
#st_write(grids, "grids_cluster_distance.gpkg")

Summary

We prepared spatial data representing the surroundings of urban streams.
We selected key indicators for stream ecology: imperviousness, slope, and crossing frequency.
We standardized the data to ensure fair clustering.
We used the elbow method to decide the K.
We performed K-means clustering to identify distinct urban stream types.
We analyzed and interpreted each cluster using cluster centers.
(Optional) We calculated how close each grid is to its cluster center.

This workflow can now be applied to your own datasets to explore meaningful typologies for planning and design. Enjoy clustering!

Appendix

A1. Formula of crossing

crossing – the number of points where roads or railways cross a stream, divided by stream length (m), multiplied by 100; related to ecological connectivity, may require ecological bridges.

\[ \text{crossing} = \frac{crossing Count}{stream Length (m)} \times 100 \]

A2. Difference between standardization and normalization

There are two common methods of scaling:

Standardization (Z-score Scaling)

\[ x' = \frac{x - \mu}{\sigma} \]

𝜇 is the mean, and 𝜎 is the standard deviation.
Centers the data around 0 with a standard deviation of 1.
Keeps the original distribution shape.

Normalization (Min-Max Scaling)

\[ x' = \frac{x - x_{\text{min}}}{x_{\text{max}} - x_{\text{min}}} \]

Rescales the values to the range [0, 1].
Sensitive to outliers.

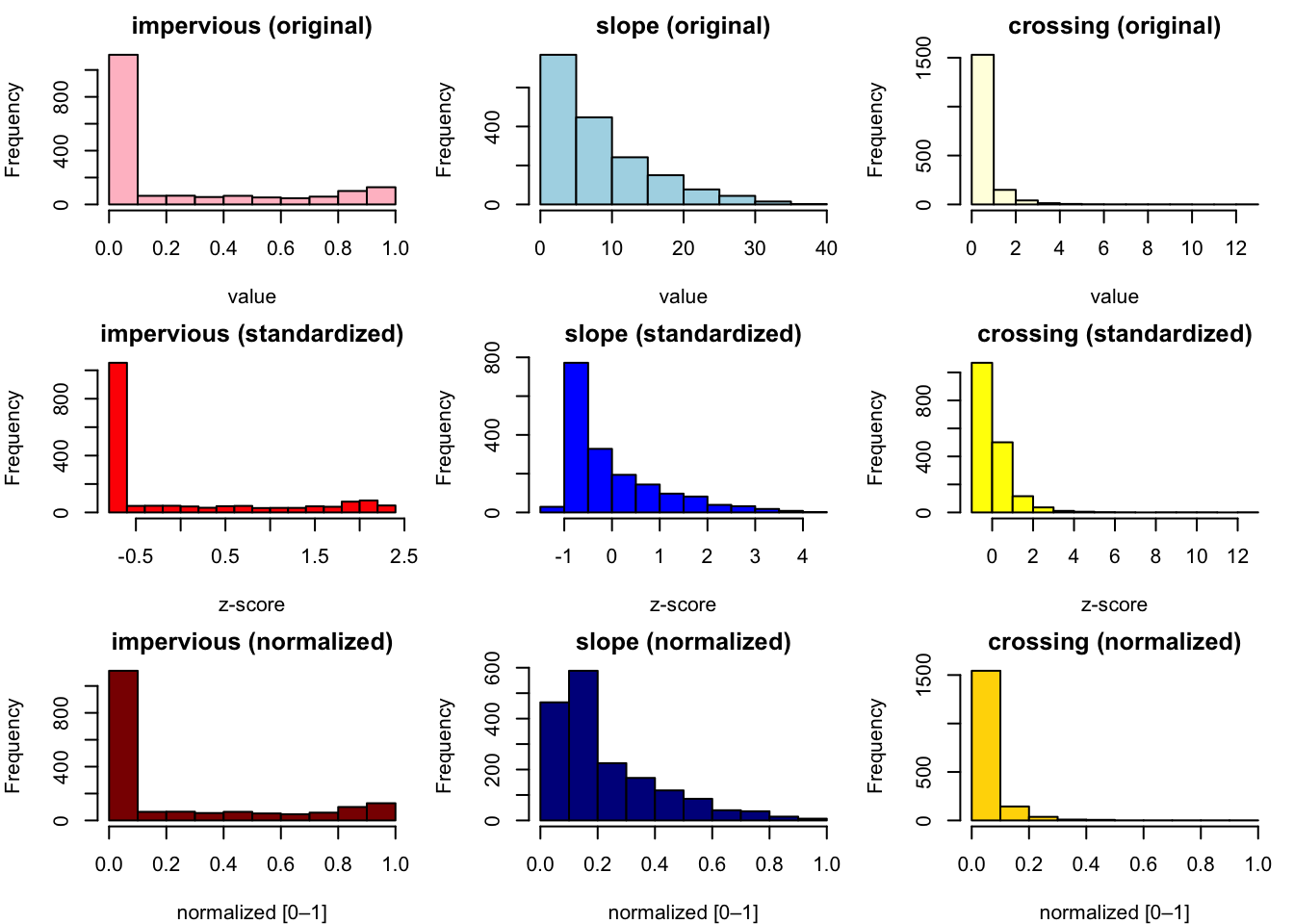

A3. Visualize variable distributions in histogram

# calculate nornalization
normalize <- function(x) (x - min(x)) / (max(x) - min(x))
features_norm <- as.data.frame(lapply(features, normalize))

# set canvas
par(mfrow = c(3, 3), mar = c(4, 4, 2, 1))

# original raw data
hist(features$impervious,
     main = "impervious (original)",
     xlab = "value", col = "pink")

hist(features$slope,
     main = "slope (original)",
     xlab = "value", col = "lightblue")

hist(features$crossing,
     main = "crossing (original)",
     xlab = "value", col = "lightyellow")

# standardization z-score
hist(X_scaled[, "impervious"],
     main = "impervious (standardized)",
     xlab = "z-score", col = "red")

hist(X_scaled[, "slope"],
     main = "slope (standardized)",
     xlab = "z-score", col = "blue")

hist(X_scaled[, "crossing"],
     main = "crossing (standardized)",
     xlab = "z-score", col = "yellow")

# normalization
hist(features_norm$impervious,
     main = "impervious (normalized)",
     xlab = "normalized [0–1]", col = "darkred", xlim = c(0, 1))

hist(features_norm$slope,
     main = "slope (normalized)",
     xlab = "normalized [0–1]", col = "darkblue", xlim = c(0, 1))

hist(features_norm$crossing,
     main = "crossing (normalized)",
     xlab = "normalized [0–1]", col = "gold", xlim = c(0, 1))

A4. K-means Euclidean distance

For a data point x with 3 variables ( u, v, w ),

\[ \mathbf{x} = (x_u, x_v, x_w) \]
and a cluster center
\[ \mathbf{c} = (c_u, c_v, c_w), \]
the Euclidean distance between the point and the cluster center is calculated as:

\[ \text{Distance} = \sqrt{(x_u - c_u)^2 + (x_v - c_v)^2 + (x_w - c_w)^2} \]

In our case:

\[ \text{Distance} = \sqrt{ (x_{\text{impervious}} - c_{\text{impervious}})^2 + (x_{\text{slope}} - c_{\text{slope}})^2 + (x_{\text{crossing}} - c_{\text{crossing}})^2 } \]

A5. Visualize cluster points in 3D distribution

cluster_colors <- c(
  "1" = "#65C3A1",
  "2" = "#FC9964",
  "3" = "#869DC5",
  "4" = "#E597C0"
)


library(plotly)

Loading required package: ggplot2


Attaching package: 'plotly'

The following object is masked from 'package:ggplot2':

    last_plot

The following object is masked from 'package:stats':

    filter

The following object is masked from 'package:graphics':

    layout

cluster3d_scaled <- plot_ly(
  x = X_scaled[, "impervious"],
  y = X_scaled[, "slope"],
  z = X_scaled[, "crossing"],
  type = "scatter3d",
  mode = "markers",
  color = as.factor(kmeans_result$cluster),
  colors = cluster_colors,
  marker = list(size = 3)
) %>%
  layout(
    scene = list(
      xaxis = list(title = "impervious"),
      yaxis = list(title = "slope"),
      zaxis = list(title = "crossing")
    )
  )
cluster3d_scaled
